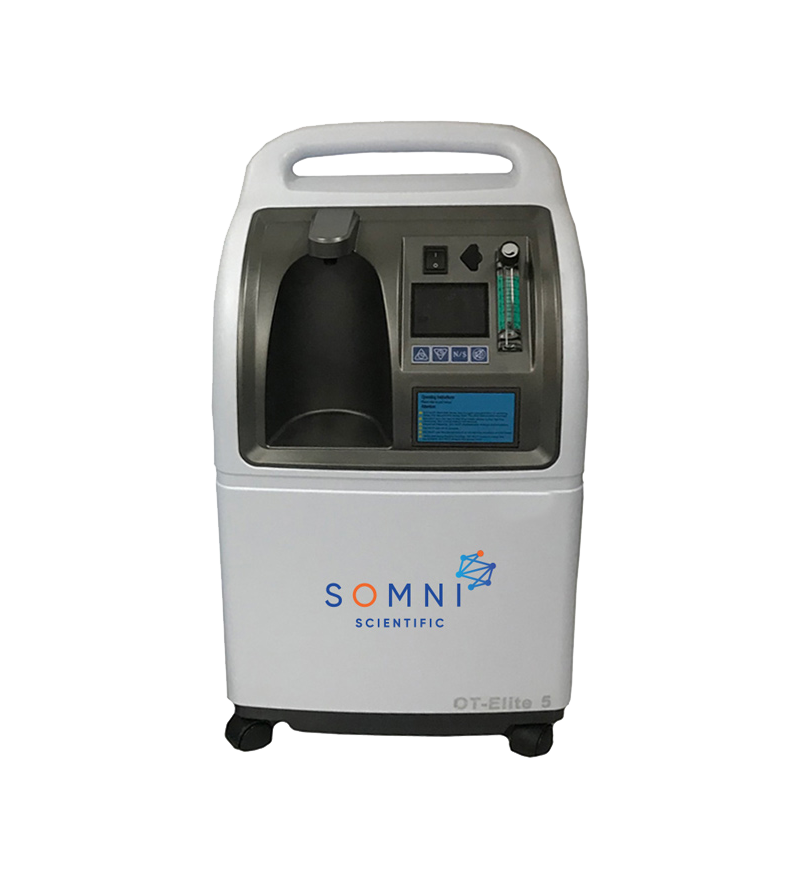

O2 Concentrator – White

Anesthesia Accessories

DATA SPECS: Model V5

Flowrate: 0-5L/min
Purity: 92+/-3%
Power consumption: 350W
Power option: 220V
Outlet Pressure: 0.04-0.08Mpa (pressure 0.08 can be customized)
Noise level: <42/50dB
Dimensions: 15.3″ x 13.2″ x 24.4″ (L*W*H)
Net Weight: 46lb Gross Weight: 52lb
Alarms:

• Low purity >82%
• Over heat
• Power failure
• High/Low pressure
• Audio / sound alarms

Features: Working Hour display and Timing function
Hospital Grade: Y – connector for double flow output

DATA SPECS: Model V10

Flowrate: 0-10L/min
Purity: 93+/-3%
Power consumption: 680W
Power option: Domestic, 110V – International, 220V
Outlet Pressure: 0.04-0.08Mpa (pressure 0.08 can be customized)
Noise level: <50dB
Dimensions: 15.3″ x 13.2″ x 24.4″ (L*W*H)
Net Weight: 68lb Gross Weight: 72lb
Alarms:

• Low purity >82%
• Over heat
• Power failure
• High/Low pressure
• Audio / sound alarms

Features: Working Hour display and Timing function
Hospital Grade: Y – connector for double flow output

Quality

• Triple air filtration including carbon and bacterial filtration.
• Multi parameter display, including percentage of concentration.
• Easy filter access.
• Consistent supply of high concentration supplemental oxygen.

Economical

• Has the ability to pay for itself in less than a year.
• Low total cost of ownership.
• Eliminates the requirement of delivered oxygen.

Safe

• Power failure, no flow, high and low pressure alarms.

Convenient

• Smooth quiet operation.
• Casters for portability.
• Programable digital run timer.
• Easily adaptable to any anesthesia system (O2 DISS MALE and Hose Barb fitting included)
